Application:
Single Compression Glands are weather proof and dust proof (IP-60) which can be used in normal climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere.
These glands are available in different sizes and are suitable for all cables upto 1000 sq. mm. and control cables upto 61 cores.
Designation:
Single Compression Glands are designated as below :
SCGn, where
| SC |
Single Compression |
| G |
Gland |
| n(n=1, 2,....20) |
Gland Size For eg.(SCG1, SCG2,...... SCG20) |
Accessories:
PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, etc. are available with specified dimensions in accordance to the Gland separately.

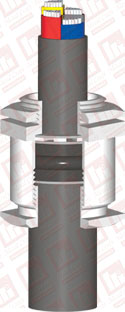

Fitting Sequence:
- Pass the Compression Nut (Part-5), one Metal Washer (Part-3) & Outer Seal Ring (Part-4) in succession order over the outer sheath of the cable before commencing to strip the cable
- Remove the outer sheath to the desired length depending on the length of the beds required.
- Pass the 2nd Metal Washer (Part-3) over the exposed armour and then splay out the armour wire one by one. Now cut the armour wire according to the size of the metal washer and bend the same. Pass the 3rd Metal Washer (Part-3) over the inner sheath and place it over the bended armour, so that the armour wires are now secured between the two Metal Washer.
- Push the assembly through the Gland Body (Part-2) and tighten the Compression Nut (Part-5). While doing so the outer seal ring will expand in radial direction and will grip the cable. This will ensure dust proof entry of the cable.
- Finally apply the fitted gland assembly to the extreme with the entry thread provided, if the enclosure does not have threaded entry than tight the gland assembly with the Check Nut (Part-1).
 |
 |
 |
|

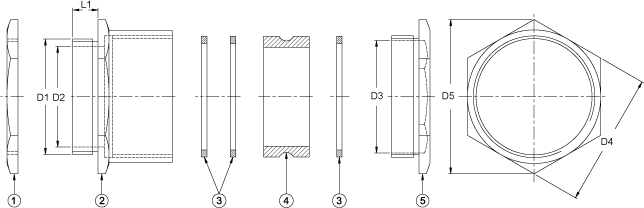

| 1. Check Nut |
2. Gland Body |
3. Metal Washer |
3. Metal Washer |
 |
|
 |
|
| 4. Outer Sealing Ring |
3. Metal Washer |
5. Compression Nut |
|
Suitable Cable
Overall Dia |
Size
Code |
D1
Nipple Entry
Threads in Metrics |
D2
Dia. |
D3
Dia. |
D4
(A/F) |
D5
(A/C) |
L1
Length |
| From |
To |
SCG |
mm |
Ø mm |
Ø mm |
mm |
mm |
mm |
| 9.0 |
12.0 |
SCG 1 |
16 x 1.5 |
12.0 |
16.0 |
22.0 |
25.5 |
9.0 |
| 12.0 |
15.0 |
SCG 2 |
16 x 1.5 |
12.0 |
18.5 |
25.0 |
29.0 |
9.0 |
| 12.0 |
15.0 |
SCG 3 |
20 x 1.5 |
15.0 |
18.5 |
25.0 |
29.0 |
9.0 |
| 15.0 |
18.0 |
SCG 4 |
20 x 1.5 |
15.0 |
24.0 |
30.0 |
34.5 |
9.5 |
| 16.0 |
20.0 |
SCG 5 |
25 x 1.5 |
20.5 |
24.0 |
31.5 |
36.0 |
9.5 |
| 20.0 |
24.0 |
SCG 6 |
25 x 1.5 |
20.5 |
28.5 |
35.0 |
40.0 |
10.0 |
| 24.0 |
28.0 |
SCG 7 |
32 x 1.5 |
27.0 |
33.0 |
40.0 |
46.0 |
12.0 |
| 28.0 |
32.0 |
SCG 8 |
40 x 1.5 |
34.0 |
37.0 |
46.0 |
53.0 |
12.0 |
| 33.0 |
37.0 |
SCG 9 |
40 x 1.5 |
34.0 |
41.0 |
50.0 |
57.5 |
12.0 |
| 37.0 |
42.0 |
SCG 10 |
50 x 1.5 |
44.0 |
47.0 |
58.0 |
67.0 |
13.0 |
| 43.0 |
48.0 |
SCG 11 |
50 x 1.5 |
44.0 |
52.0 |
65.0 |
75.0 |
13.0 |
| 49.0 |
54.0 |
SCG 12 |
63 x 1.5 |
55.0 |
61.5 |
73.0 |
84.0 |
14.0 |
| 55.0 |
60.0 |
SCG 13 |
63 x 1.5 |
55.0 |
65.0 |
77.0 |
89.0 |
14.0 |
| 61.0 |
66.0 |
SCG 14 |
75 x 1.5 |
68.0 |
71.0 |
85.0 |
98.0 |
15.0 |
| 67.0 |
72.0 |
SCG 15 |
75 x 1.5 |
67.0 |
76.0 |
90.0 |
104.0 |
15.0 |
| 73.0 |
78.0 |
SCG 16 |
82 x 1.5 |
73.0 |
82.0 |
97.0 |
112.0 |
17.0 |
| 79.0 |
84.0 |
SCG 17 |
90 x 1.5 |
81.0 |
91.0 |
108.0 |
124.0 |
19.0 |
| 84.5 |
92.0 |
SCG 18 |
100 x 1.5 |
91.0 |
98.0 |
117.0 |
135.0 |
20.0 |
| 93.0 |
100.0 |
SCG 19 |
110 x 1.5 |
100.0 |
107.0 |
127.0 |
146.0 |
25.0 |
| 101.0 |
115.0 |
SCG 20 |
125 x 1.5 |
113.0 |
118.0 |
142.0 |
164.0 |
25.0 |
|
