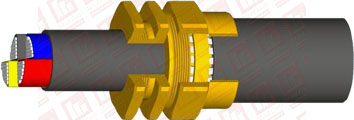

BW-2 Part Industrial Cable Gland (Knurling Type)
Technical Data:
Size : :
20mm to 90mm & ¾" to 3"
Standard : :
Function : :
Provides mechanical cable retention & electrical continuity via armoured wire termination in indoor area. It is easy to install.
Ingress Protection : :
Material : :
Brass BS 2874
Thread : :
Operating Temp. : :
-80°C to +300°C
Cable Type : :
Features : :
Accessories : :
Packing : :
Size
Thread Size “C”
Thread
Cable Dia.
Cable Dia.
Armour
Across
Across
Metric
NPT
20S
20
½”
10.00
11.50
15.50
0.9-1.25
21.25
23.25
20
20
½”
10.00
14.00
20.00
1.25-1.60
23.85
27.25
25
25
1"
10.00
20.50
26.00
1.60-2.00
34.00
37.00
32
32
1"
15.00
27.00
33.90
1.60-2.00
40.50
45.50
40
40
1¼”
15.00
33.00
41.50
2.0-2.50
48.00
54.50
50S
50
1½”
15.00
38.50
47.00
2.0-2.50
55.00
60.00
50
50
2"
15.00
44.00
52.00
2.50
63.00
71.00
63S
63
2"
15.00
51.00
59.20
2.50
70.50
75.50
63
63
2½”
15.00
56.80
65.50
2.50
75.00
84.50
75S
75
2½”
15.00
63.00
74.00
2.5-3.15
85.00
90.00
75
75
3"
15.00
68.50
79.50
3.15
92.25
102.50
82
82
3"
15.00
74.30
84.40
3.15
95.00
105.00
90
90
3”
15.00
82.00
91.00
3.15
99.00
110.00
BW-4 Part Industrial Cable Gland
Technical Data:
Size : :
Standard : :
Function : :
Provides mechanical cable retention & electrical continuity via armoured wire termination in indoor area.
Ingress Protection : :
Material : :
Thread : :
Operating Temp. : :
-80°C to +300°C
Cable Type : :
Features : :
Accessories : :
Packing : :
Size
Thread Size “C”
Thread
Cable Dia.
Cable Dia.
Armour
Across
Across
Metric
NPT
A Max.
B Max.
20S
20
½”
10
11.70
15.90
0.9-1.25
23.50
26.00
20
20
½”
10
14.00
20.00
0.9-1.25
25.00
28.00
25S
25
¾”
10
18.00
24.00
1.25-1.60
31.00
35.50
25
25
¾”
10
20.50
27.00
1.25-1.60
33.00
37.00
32S
32
1"
10
27.00
33.50
1.60-2.00
40.50
45.50
32
32
1"
10
27.00
33.50
1.60-2.00
40.50
45.50
40S
40
1¼”
10
31.50
39.50
1.60-2.00
45.50
50.50
40
40
1¼”
15
33.50
41.50
1.60-2.00
49.00
55.00
50S
50
1½”
15
39.50
48.50
2.00-2.50
56.50
63.50
50
50
2"
15
44.50
54.50
2.00-2.50
62.50
70.50
63S
63
2"
15
50.20
59.20
2.50
68.80
77.00
63
63
2½”
15
56.50
65.60
2.50
76.00
86.00
75S
75
2½”
15
63.50
72.00
2.50
86.00
94.50
75
75
3"
15
69.50
78.50
2.50-3.15
90.00
101.00
90
90
3"
20
80.50
91.00
3.15
100.00
111.50
