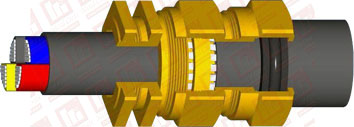

CW-3 Part Industri Cable Gland

Technical Data:


Size : 1 16mm to 115mm and ½" to 3"
Standard : BS 6121:Part-1:2005, EN 50262: 1999
Function : Providing environmental seal on the SWA cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor & outdoor area.
Ingress Protection : IP66
Material : Brass BS 2874
Operating Temp.   -60°C to +130°C
Cable Type   SWA Cable
Features   Universal anyway clamping ring
Accessories   PVC Shroud, Earth Tag, Lock Nut, Serrated Washer and Entry Thread Seal
Packing   Gland Kit contain 1 Brass Cable Gland, 1 Brass Lock Nut, 1 Brass Earth Tag and 1 PVC Shroud.
Size Thread Size “C” Thread
Length “D”		 Cable Dia.
“A” Max.		 Cable Dia. B
 Armour
Wired Dia.		 Across
Flat		 Across Corners
Metric NPT Min. Max.
16 16 - 10 8.60 6.10 12.00 0.90 20.00 23.00
20S 20 ½” 10 11.80 9.50 16.20 0.90-1.25 24.00 27.00
20 20 ½” 10 14.00 13.00 20.25 0.90-1.25 27.70 31.00
25 25 ¾” 10 20.30 18.00 26.00 1.20-1.60 35.00 39.00
32 32 1" 10 26.50 23.00 33.70 1.60-2.00 43.00 47.50
40 40 1¼” 13 33.20 28.00 40.10 1.60-2.00 51.50 57.00
50S 50 1½” 13 40.00 34.50 45.75 2.00-2.50 58.50 65.00
50 50 2" 13 44.00 39.60 53.10 2.00-2.50 66.00 73.00
63S 63 2" 14 50.00 44.00 59.40 2.50 72.00 80.00
63 63 2½” 14 56.00 54.50 65.00 2.50 80.00 89.00
75S 75 2½” 15 62.00 59.00 71.40 2.50 86.50 97.00
75 75 3" 15 69.00 66.70 78.00 2.50 94.00 105.00
90 90 3" 20 80.00 76.20 89.25 2.50-3.15 106.00 118.70
100 100 3½” 20 91.00 86.00 102.00 3.15-4.0 123.00 133.00
110 110 - 20 100.00 101.00 110.50 3.15-4.0 134.00 144.00
115 115 - 20 102.00 101.50 110.50 3.15-4.0 134.00 144.00

CW-4 Part Industrial Cable Gland

Technical Data:

Size : 16mm to 90mm & ½" to 3"
Standard : BS 6121:Part-1:2005, EN 50262: 1999
Function : Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection : IP66
Material : Brass BS 2874
Thread : Metric, NPT
Operating Temp.   -20°C to +80°C
Cable Type   SWA Cable
Features   Universal anyway clamping ring
Accessories   PVC Shroud, Lock Nut, Earth Tag, Serrated Washer and Entry Thread Seal
Packing   Gland Kit contain 1 Brass Cable Gland, 1 Brass Lock Nut, 1 Brass Earth Tag and 1 PVC Shroud.


Size Thread Size “C” Thread
Length “D”		 Cable Dia. A
 Cable Dia. B Armour
Wire Dia.		 Across
Flat		 Across
Corners
Metric NPT Max. Min. Max.
16 16 - 10 8.60 6.10 13.50 0.9 20.00 23.00
20S 20 ½” 10 11.80 10.20 17.80 0.9-1.25 24.00 27.00
20 20 ½” 10 14.00 13.80 20.80 0.9-1.25 27.70 31.00
25S 25 ¾” 10 18.00 16.50 24.00 1.20-1.60 31.50 35.00
25 25 ¾” 10 20.30 21.90 27.40 1.20-1.60 35.00 39.00
32S 32 1" 10 24.50 25.80 31.00 1.60-2.00 43.00 47.50
32 32 1" 10 26.50 25.80 34.20 1.60-2.00 43.00 47.50
40S 40 1¼” 13 30.40 26.50 38.50 1.60-2.00 51.50 57.00
40 40 1¼” 13 33.20 28.50 41.00 1.60-2.00 51.50 57.00
50S 50 1½” 13 40.00 28.50 47.00 2.00-2.50 58.50 65.00
50 50 2" 13 44.00 28.50 53.50 2.00-2.50 66.00 73.00
63S 63 2" 14 50.00 45.50 59.00 2.50 72.00 80.00
63 63 2½” 14 56.00 54.50 66.00 2.50 80.00 89.00
75S 75 2½” 15 62.00 62.75 72.00 2.50 86.50 97.00
75 75 3" 15 69.00 68.19 79.00 2.50 94.00 105.00
90 90 3" 20 76.00 75.00 86.00 2.50-3.15 106.00 118.00
